Plastic Heat Exchanger

Plastic Heat Exchanger is the most excellent heat exchanger made from heat-resisting Polyethylene(HTPE) and PVDF (Polyvinyl Di-fluoride) and polypropylene(PP). Plastic Heat Exchangers have been used in various fields in various industries.

Features

1. Excellent corrosion resistance.
2. Large heat transfer area in small space.
3. Made from the same material.
4. Space between tubes is constant, and tubes are not worn away with each other.
5. Freely design by Modular method.
6. Low scaling.
7. All tubes have high mechanical impact-resistant and high thermal-resistant.
8. Unique alignment of tubes contributes to high heat transfer coefficient.
9. Heat exchanger of PVDF Material can be operated with steam pressure up to 2.0 bars, and 140 degree Centigrade.

Applications


Tube Plate type (external circulation type)
Immersion type
Used as heater and cooler for high-purity corrosive liquid at chemical, non-ferrous metal refining, electron, and surface-plating industry.
* As Tube Plate Heat Exchanger is made from the same material, it is possible to flow corrosive liquid into both sides (Tube side/ Casing side).

Gas/Liquid type
Used as thermal collector for acid waste gas before neutralization, secondary cooler for incinerator gas, and heater/cooler/thermal collector for corrosive gas.
* Able to install washing spray and Mist Eliminator (attachment) for dirty application.

Inquiry
@@@

Heat Exchangers
„¥„  Ultra High Purity PFA Heat Exchanger of Teflon®
„¥ Heat Exchanger of Teflon®
„¥ Module Type Heat Exchaner
„¤ Plastic Heat Exchanger of Teflon®
Environmental Equipments
„¥ Mist Eliminator B-GON®
„¤ White smoke removal system
„¥ Oleum smoke removal system
„¤ Ammonium chloride smoke removal system

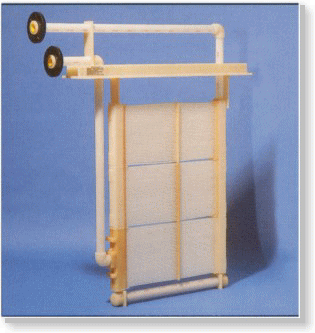

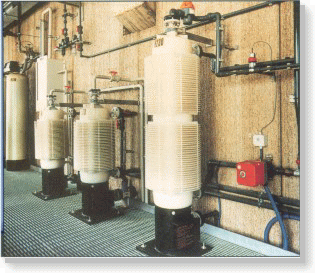

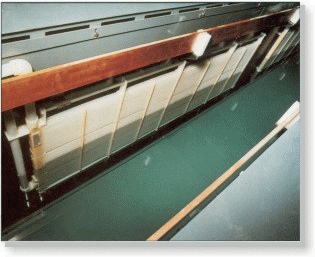

Tube Plate type Example of Immersion type installation Immersion type
